Basic Operations for Report Design

Datafor provides powerful and flexible dashboard and report creation capabilities, allowing users to efficiently manage and adjust visualization components on the canvas. This document introduces key operations, including adding, deleting, resizing, moving, aligning, distributing, layering, switching types, and copying components.

1. Adding and Deleting Components

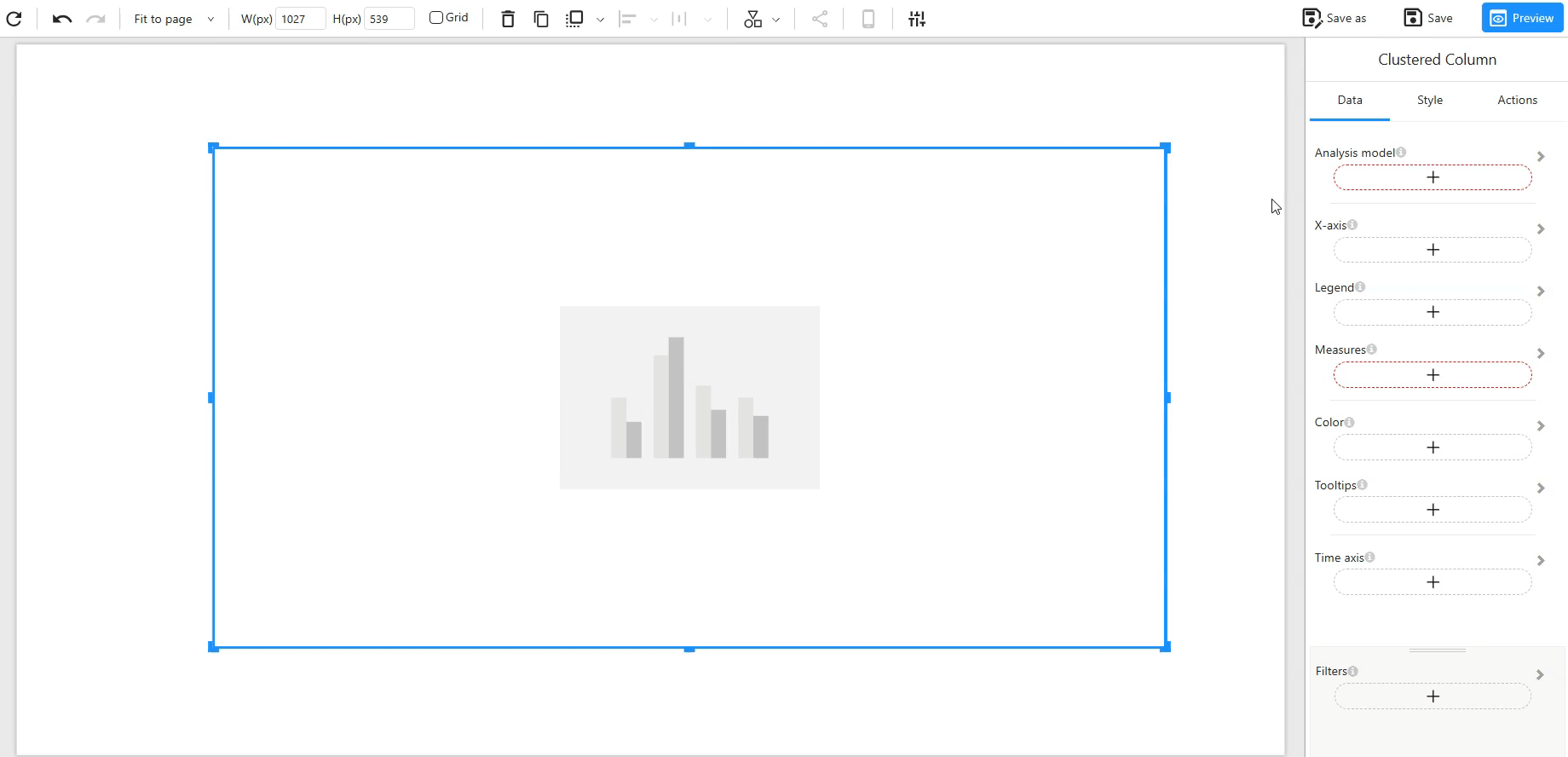

Adding Components

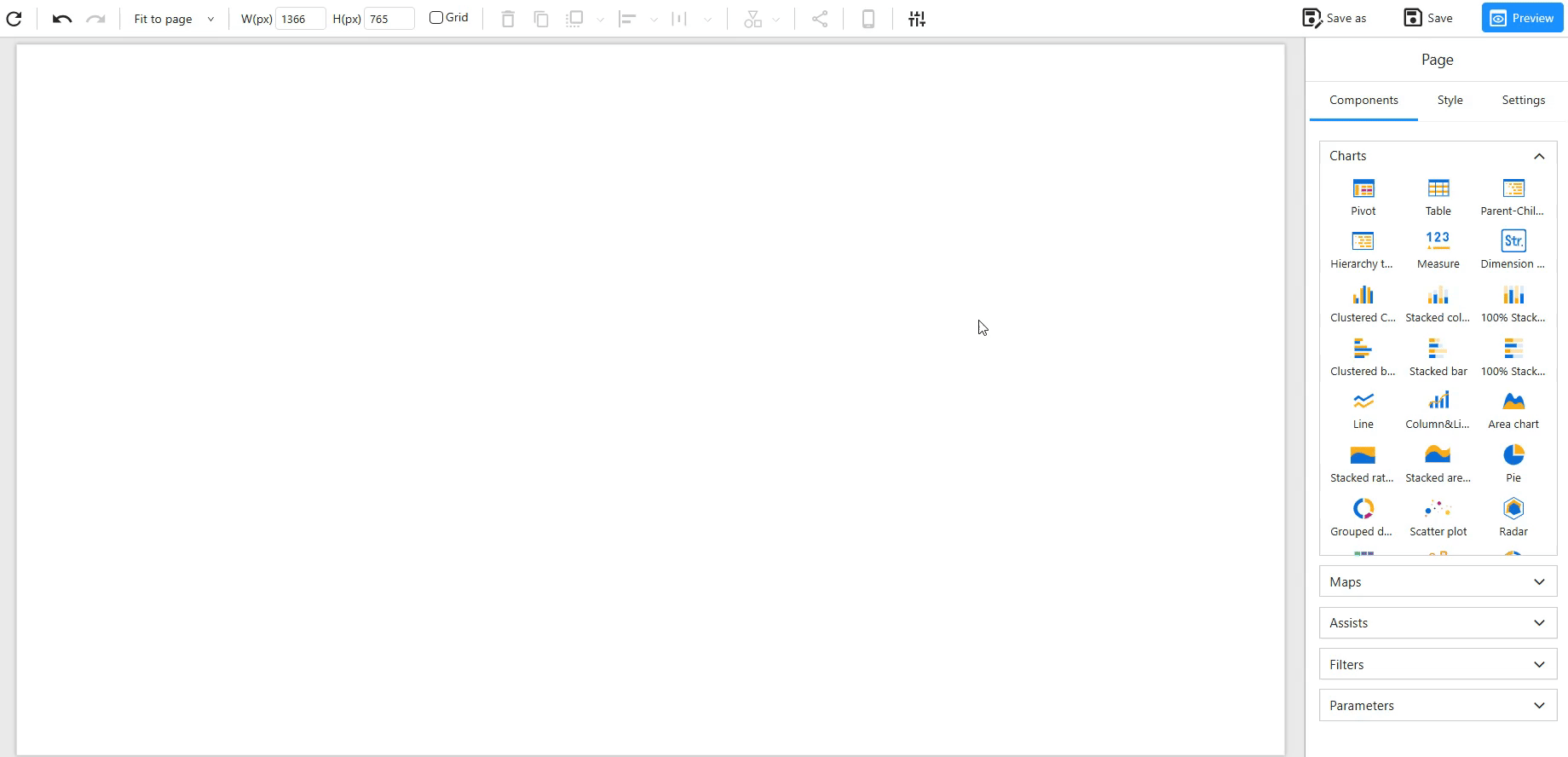

Select the desired component type from the right-side component panel.
Click on the selected component. Click on the canvas or drag and drop it to add it to the report canvas.

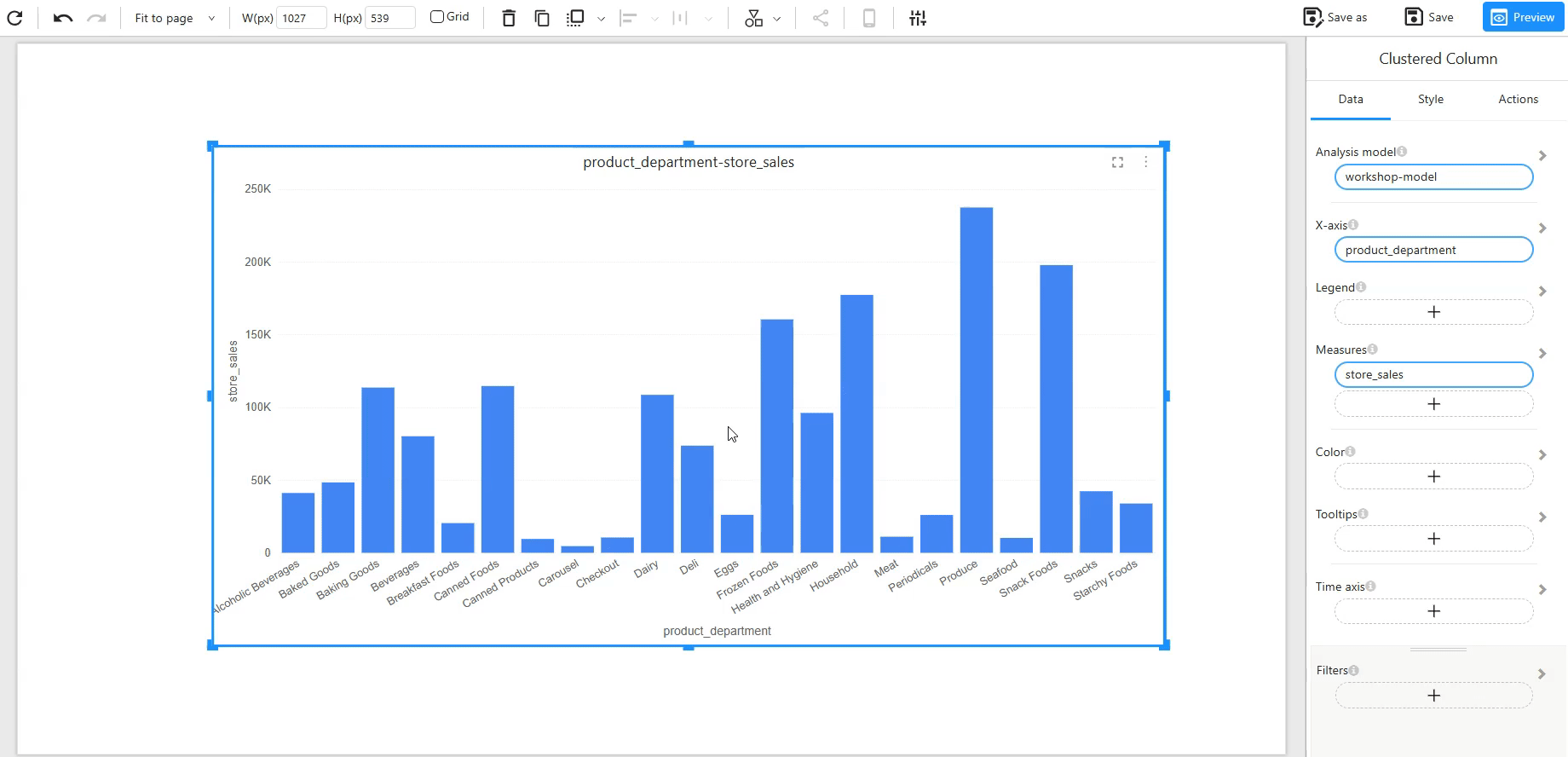

In the data panel, select an analysis model and add data fields (e.g., X-axis, Legend, Measures) to populate data.

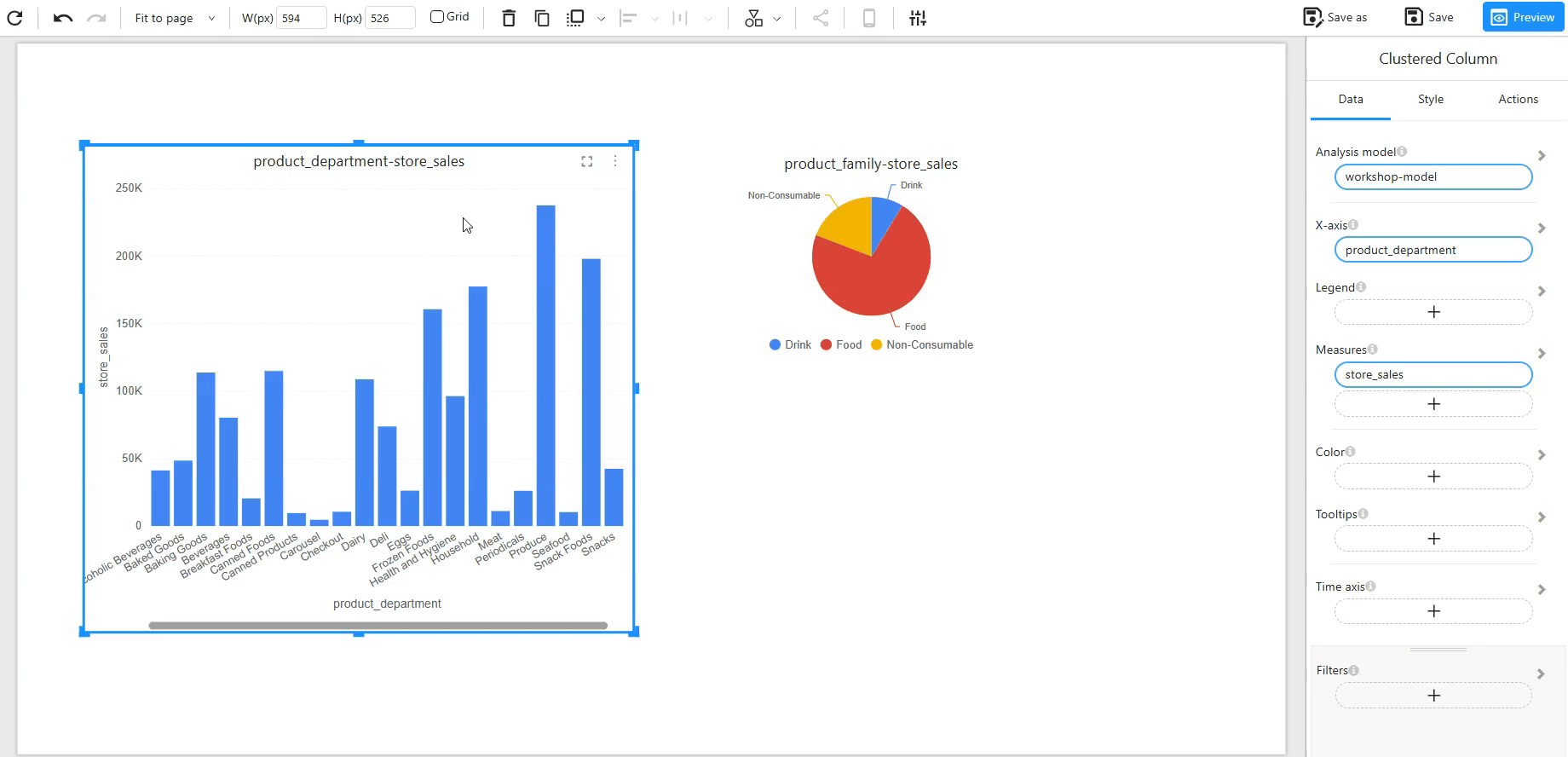

Deleting Components

Click to select the component you want to delete, or press Ctrl + Click to select multiple components.
Press the Delete key, or click the “Delete” button on the toolbar to remove the component.

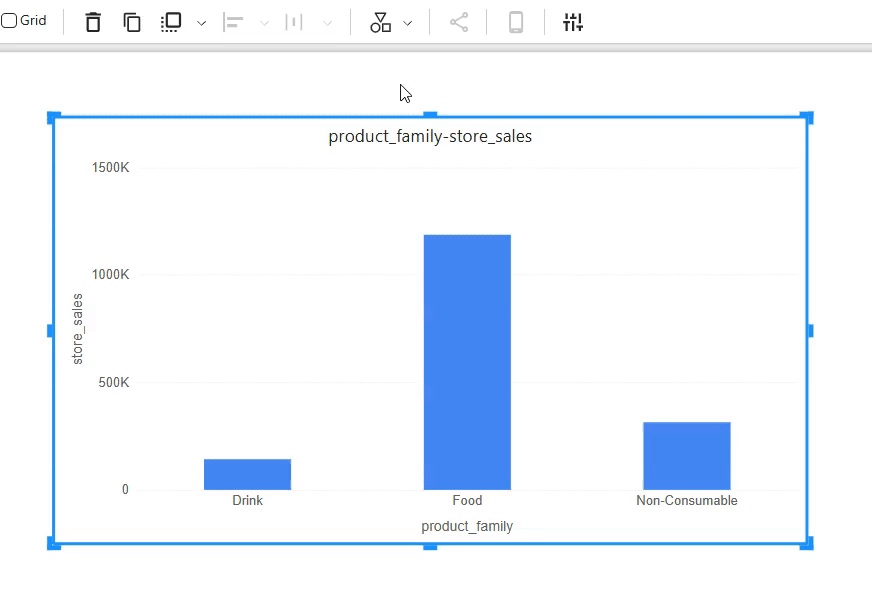

2. Resizing Components

Using Drag Handles

Select the component and drag the resize handles at the corners or edges to adjust its size.

Specifying Exact Width and Height

Enter the width and height values directly in the toolbar’s input fields for precise adjustments, particularly useful for resizing multiple components simultaneously.

3. Moving Components

Drag and Drop

Select one or multiple components and drag them to the desired position on the canvas.

4. Aligning and Distributing Components

Aligning Components

Hold Ctrl and click multiple components to select them.
Click the “Align” button on the toolbar and choose the desired alignment option (left, center, right, etc.).

Distributing Components

Select multiple components.
Click the “Distribute” button on the toolbar and choose horizontal distribution or vertical distribution to evenly space them.

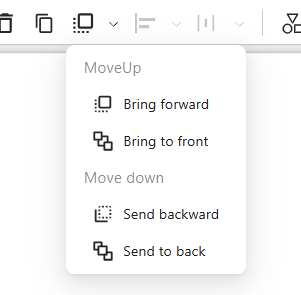

5. Layering Components

Click the “Layer” button on the toolbar to adjust its position in the layering order (bring forward, send backward, bring to front, send to back).

6. Copying and Pasting Components

Datafor supports copying, cutting, and pasting single or multiple components, including cross-page operations.

Select the components and click the “Clone” button on the toolbar.

Using Keyboard Shortcuts

Ctrl + C (Copy), Ctrl + X (Cut), Ctrl + V (Paste).

7. Switching Component Types

During the design process, users can switch component types while retaining the original data model to accommodate different visualization needs.

Select the component and click the “Switch Type” button on the toolbar.
Choose the target component type, and the system will automatically update the visualization.
